Clarion Logo
DOT-Approved Water Trailer

The 550 Gallon
Express Water Wagon

One tandem-axle trailer for dust control, jobsite compaction, fire suppression, washdown, and remote watering. Built to work where the water needs to go.

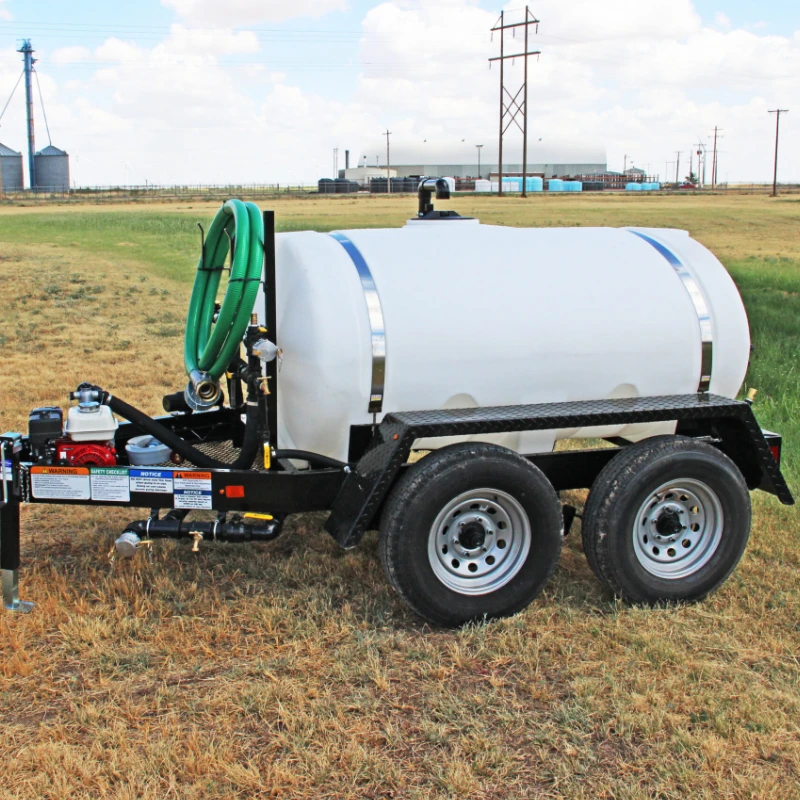

550 Gallon Water Trailer
550 gal
Tank Capacity
137 GPM
Pump Flow Rate
6,200 lb
GVWR
DOT
Road Approved
What It Handles

One Trailer, A Full Day's Work

The 550 is sized for crews that need real water capacity without stepping up to a heavy tandem rig. Here is where it earns its keep.

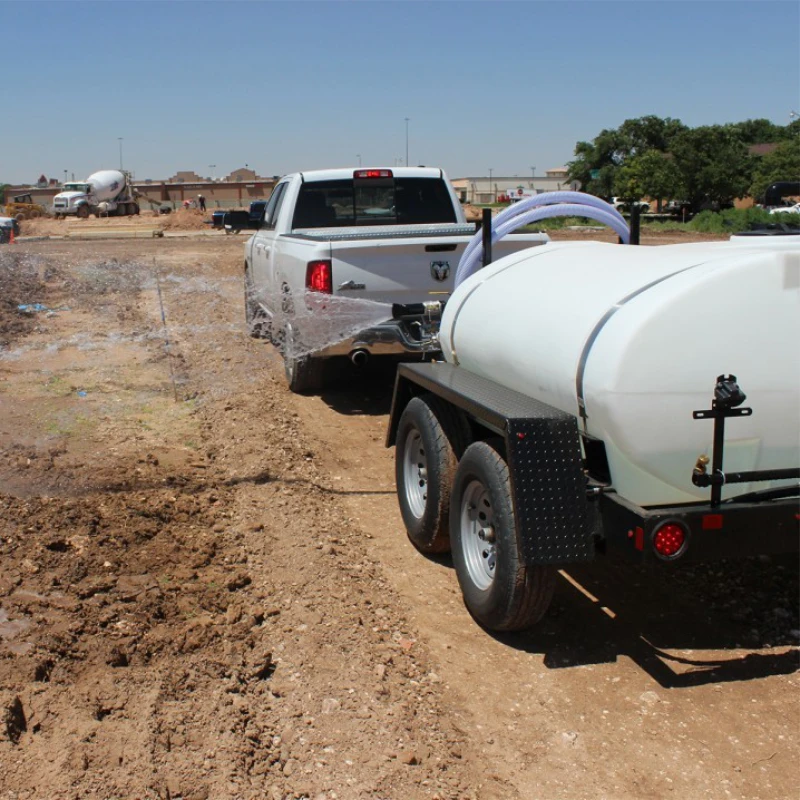

Dust Control

Knock down dust on haul roads, lots, and unpaved sites with a 25 foot spray bar and dual nozzles.

Soil Compaction

Pack building pads and roadbeds to spec by laying down even, controlled water ahead of the roller.

Fire Suppression

Carry the included fire hose, nozzle, and hydrant adapter to knock down grass and brush fires on site.

Equipment Washdown

Rinse machines, forms, and tools wherever the work is, no hydrant or building hookup required.

Remote Watering

Reach vegetation, plantings, and reclamation areas that sit well past the nearest water source.

Concrete & Saw Cooling

Keep blades and fresh pours cooled and cured with water on hand at the cut.

Specifications

The 550 By The Numbers

Tank Capacity550 gallons
TankFull-drain poly, baffled (white or black)
Dimensions (L x W x H)162 in x 80.5 in x 62 in

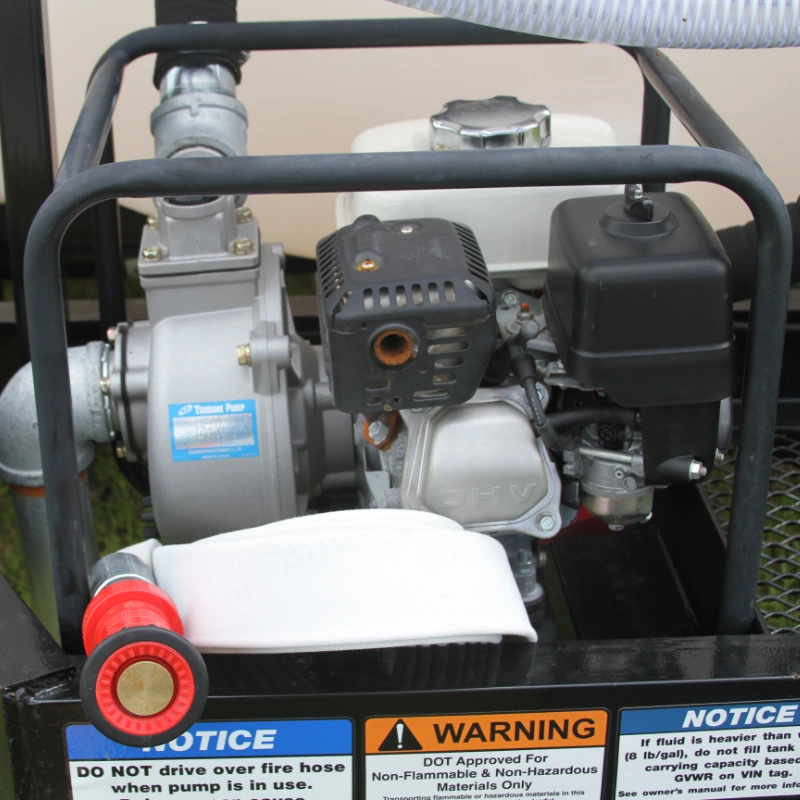

Pump2 in pump
Engine4 HP Honda
Flow Rate137 GPM

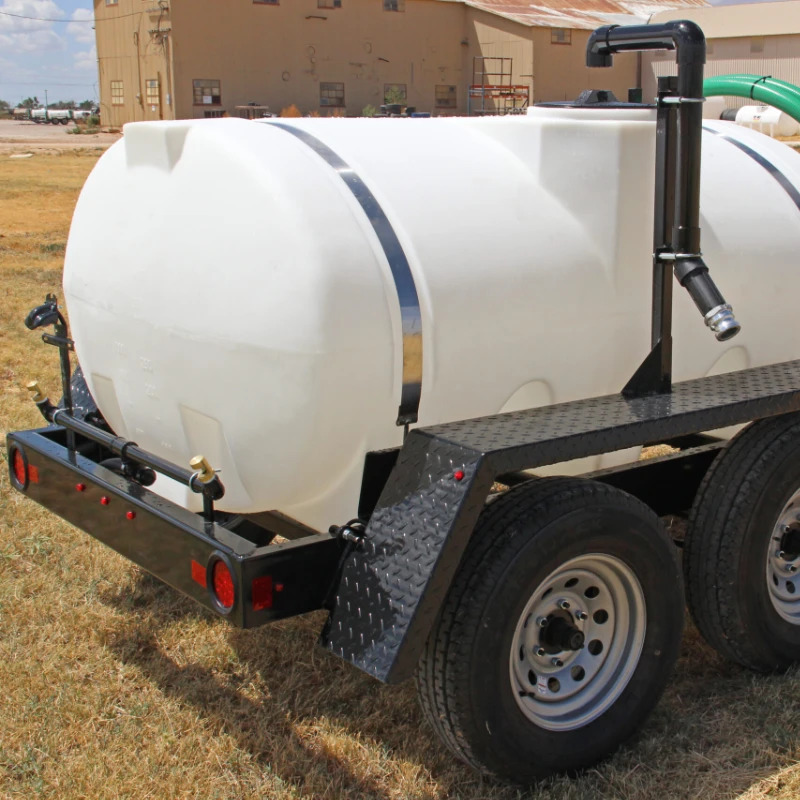

SprayGalvanized spray bar, dual nozzles, 25 ft swath
Frame6 in channel iron
AxlesTandem leaf spring, 3,500 lb
TiresST225/75D15-D
BrakesElectric (surge brake model available)
HitchAdjustable height, 2 in ball or 3 in pintle
GVWR6,200 lb
Empty Weight1,500 lb
Standard Equipment

What Comes On Every 550

1yr / 5yr

Backed by a 1 year warranty on components and frame, and a 5 year warranty on the tank.

Gallery

Up Close

Explore The Range

Need Something Different?

The 550 is the workhorse, but the same build quality runs across the rest of the line.

Potable water trailer
550 to 2,010 gal

Potable Water Trailer

Water people can drink. An FDA- and NSF-approved poly tank with food-grade plumbing throughout, in pressurized-pump or pumpless gravity-flow setups. DOT approved for the road.

View Potable Trailers ›
Arena water wagon for dust control
500 & 1,025 gal

Arena Water Wagon

Built for arena footing and off-road dust control. A 25 ft galvanized spray bar and a manual rope-ratchet on/off valve, on a single or tandem axle.

View Arena Wagons ›
Off-road use only. Not DOT approved. 20 mph max.
Fire control water trailer with hose reel
550 to 1,025 gal

Fire Control Trailer

For on-site fire suppression and rapid deployment. A 50 ft fire hose on a swivel reel, a hydrant adapter, and brass-valve manifolds. Suppressant mixes right in the tank.

View Fire Control Trailers ›
Get Started

Request A Quote On The 550

Tell us about the job and a specialist will help you spec the right trailer for the work, the haul, and the crew. No pressure, just the right fit.

Or call 1-863-261-8388
