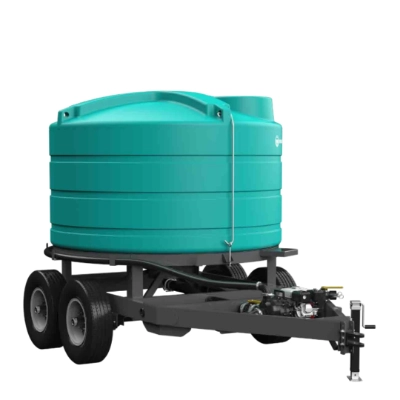

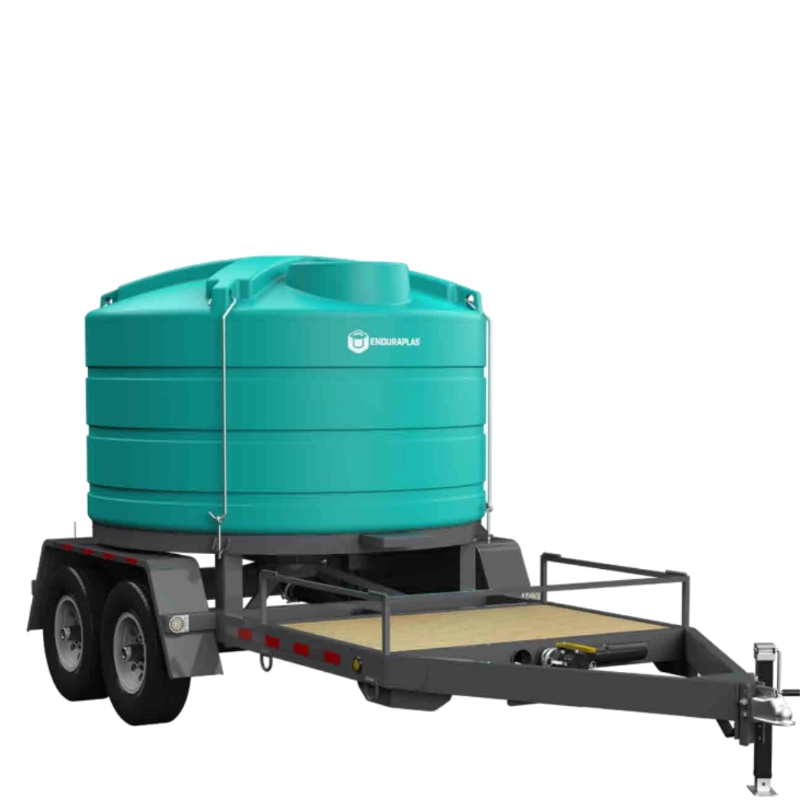

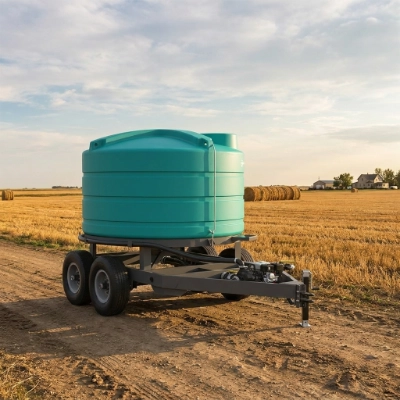

1,200 Gallon Cone Bottom Trailer
Single-Tank DOT and Non-DOT Cone Bottom Water Trailers
One Clarion's 1,200 gallon cone bottom trailer gives farms and ranches a reliable way to move and dispense water, liquid fertilizer, and crop protection product across the field or between sites. This single cone bottom water trailer joins our lineup of water trailers built for agriculture, riding on a full 1,200 gallon platform that keeps liquid handling close to where crops, livestock, and equipment need it through planting, spraying, and harvest. A centrifugal poly pump moves liquid at 195 GPM through a 2" manifold and a 20' discharge hose, so filling sprayers, water wagons, and tanks goes fast. The vertical cone bottom poly tank drains 100%, so it empties completely between loads and switching products stays clean with nothing left behind, giving your crews one large, mobile liquid source and fewer trips during the busy season.
Single Tank Cone Bottom Trailer Specifications
| Specification | 1,200 Gallon DOT | 1,200 Gallon Non-DOT |
|---|---|---|
| Compliance / Towing | DOT-compliant: clearance, stop, turn, tail, and license lights; electric brakes with breakaway (both axles); fenders; 7-pole RV plug | Non-DOT, off-farm / private ag use only. No brakes, lights, fenders, or electrical plug |
| Tank | 1,200 gal vertical cone bottom poly tank; 100% draining | 1,200 gal vertical cone bottom poly tank; 100% draining |
| Engine & Pump | 2" Banjo centrifugal poly pump, 195 GPM; Honda GX160 5.5 HP | 2" Banjo centrifugal poly pump, 195 GPM; Honda GX160 5.5 HP |
| Hose Kit | 20' discharge hose | 20' discharge hose |
| Fittings / Fill System | 2" Banjo manifold; plumbing variant: Complete Plumbing or Plumbing Prep | 2" Banjo manifold; plumbing variant: Complete Plumbing or Plumbing Prep |
| Axles & Brakes | 2 x 7,000 lb slipper spring; electric brakes with breakaway (both axles) | 2 x 7,000 lb slipper spring; no brakes |
| Wheels & Tires | 235/80 R16 10 PLY highway tire on ag wheel | 235/80 R16 10 PLY highway tire on ag wheel |
| Towing & Safety | 20,000 lb clevis or 2-5/16" ball; breakaway; DOT light kit; fenders; 7-pole plug | 20,000 lb clevis; no safety lighting or brakes |
| Dimensions (L x W x H) | 215" x 95" x 100" | 165" x 95" x 100" |
| Empty / Dry Weight | 2,035 lbs | 1,940 lbs |
Single Cone Bottom Trailer Details
One 1,200 gallon single cone bottom platform, your choice of road-legal DOT or off-farm non-DOT. The vertical cone bottom poly tank drains 100% for clean changeovers between water, fertilizer, and chemical. A centrifugal poly pump moves product at 195 GPM through a 2" manifold and a 20' discharge hose. Both builds ride on 7,000 lb slipper spring axles with a 20,000 lb clevis hitch. The DOT build adds electric brakes with breakaway, a full light kit, fenders, and a 7-pole plug for the road. The non-DOT build leaves those off for lighter off-farm use. Want the dual-tank version instead? See the cone bottom tank trailer.
Single Cone Bottom Trailer Features
- One 1,200 gallon single cone bottom platform in DOT or non-DOT builds
- 100% draining vertical cone bottom poly tank for clean chemical changeovers
- Centrifugal poly pump rated at 195 GPM with a 2" manifold and 20' discharge hose
- 2 x 7,000 lb slipper spring axles and a 20,000 lb clevis hitch
- DOT build: electric brakes with breakaway, full light kit, fenders, and a 7-pole plug
- Non-DOT build: no brakes or lights, off-farm and private ag use only
Single Cone Bottom Trailer Benefits
- Carries water, liquid fertilizer, or crop protection product, one liquid at a time
- Full drain leaves no product behind between loads
- Road-legal DOT build tows between fields and sites
- Lighter non-DOT build for lower-cost in-field work
1,200 Gallon Cone Bottom Trailer Downloads
Farm Cone Bottom Trailer Applications
On farms and ranches the 1,200 gallon cone bottom trailer handles single-tank liquid transport and dispensing: water, liquid fertilizer, or crop protection product, one liquid at a time. Choose the DOT build to move product between fields or sites on the road, with electric brakes, breakaway, and full lighting for legal towing. Choose the non-DOT build for in-field and off-farm work where no road equipment is needed. The full-drain cone bottom empties completely between loads, so switching from one product to the next stays clean and fast through the spraying and growing season.
For freeze protection on your water trailer or skid, our Water Trailer Heater Blankets keep tanks at a constant temperature so fluids do not freeze in extreme conditions. We customize thermal blankets to your tank size and shape. Call us to find out more.
Frequently Asked Questions
1,200 Gallon Cone Bottom Trailer Questions and Answers
The DOT build is set up for road-legal towing. It includes electric brakes with emergency breakaway on both axles, clearance, stop, turn, tail, and license lights, fenders, and a 7-pole RV plug. The non-DOT build drops all of that road equipment for lighter, lower-cost work and is for off-farm and private ag use only.
The DOT build comes with electric brakes and emergency breakaway on both 7,000 lb axles for road-legal towing. The non-DOT build has no brakes and is intended for off-farm and private ag use only. Which one you need depends on whether you tow on public roads or stay in the field.
The DOT build is built for road-legal transport, with electric brakes, breakaway, fenders, full lighting, and a 7-pole plug so you can move product between fields and sites. The non-DOT build is for off-farm and private ag use only and is not set up for highway towing.
Yes. Both builds use a vertical cone bottom poly tank that drains 100%, so the trailer empties completely between loads. The full drain makes rinsing and switching between water, fertilizer, and crop protection product clean and fast.
