UTV Field Boss Sprayers
Field Boss Sprayers for Sale
The Field Boss UTV sprayer is a skid-mounted spot and boom sprayer that drops straight into a UTV bed, ATV rack, or truck bed for fast field, ranch, and right-of-way spraying. There is no frame, no axles, and no hitch. You set the skid in the bed and go. Choose from three Field Boss pump types to match the job: a high-volume gas pump for laying down water fast over large areas, a quiet 12-volt electric pump for low-maintenance spot work, and a high-pressure gas pump for distance and tall growth. Each pump type comes in a 60 or 100 gallon tank, so you can size the skid to your vehicle and your acreage. This is a drop-in spot sprayer for vegetation control, food plots, pasture, and turf, not a towed water trailer. Browse the specs below, then call or request a quote.
Field Boss UTV Skid Sprayer Specifications

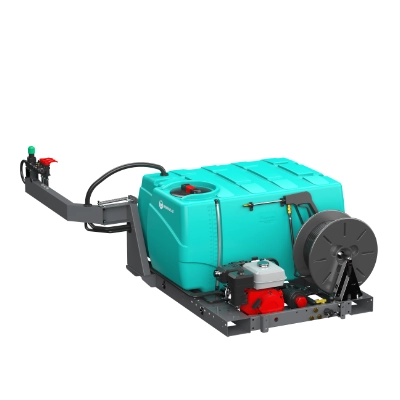

Field Boss 365 (High-Flow Gas Model)
| Spec | 60 Gallon | 100 Gallon |
|---|---|---|
| Model / Part # | SFB060FG225GH | SFB100FG225GH |
| Category | UTV Sprayer / Skid | UTV Sprayer / Skid |
| Tank Capacity | 60 Gallon | 100 Gallon |
| Dimensions (L x W x H) | 48" x 38" x 23" | 48" x 45" x 27" |
| Pump | Centrifugal | Centrifugal |
| Engine | 4 HP Honda GX120 Gas | 4 HP Honda GX120 Gas |
| Flow Rate | 22.5 GPM | 22.5 GPM |
| Pressure | 50 PSI | 50 PSI |
| Hose | 50 ft | 50 ft |
| Dry Weight | 185 lbs | 200 lbs |
| Tank | Poly Tank, Light-Block, Auto-Drain Sump Base | Poly Tank, Light-Block, Auto-Drain Sump Base |

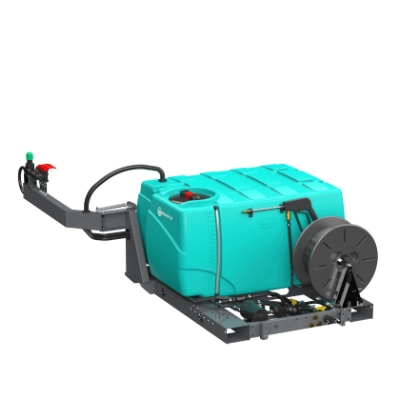

Field Boss EcoLite (12-Volt Electric Model)
| Spec | 60 Gallon | 100 Gallon |
|---|---|---|
| Model / Part # | SFB060FG712V | SFB100FG712V |
| Category | UTV Sprayer / Skid | UTV Sprayer / Skid |
| Tank Capacity | 60 Gallon | 100 Gallon |
| Dimensions (L x W x H) | 48" x 38" x 23" | 48" x 45" x 27" |
| Pump | Diaphragm | Diaphragm |
| Power | 12 Volt Electric | 12 Volt Electric |
| Flow Rate | 7 GPM | 7 GPM |
| Pressure | 70 PSI | 70 PSI |
| Hose | 50 ft | 50 ft |
| Dry Weight | 180 lbs | 195 lbs |
| Tank | Poly Tank, Light-Block, Auto-Drain Sump Base | Poly Tank, Light-Block, Auto-Drain Sump Base |

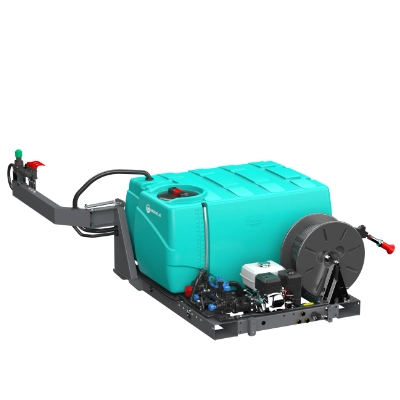

Field Boss Xstream (High-Pressure Gas Model)
| Spec | 60 Gallon | 100 Gallon |
|---|---|---|
| Model / Part # | SFB060FG290EX | SFB100FG290EX |
| Category | UTV Sprayer / Skid | UTV Sprayer / Skid |
| Tank Capacity | 60 Gallon | 100 Gallon |
| Dimensions (L x W x H) | 48" x 38" x 23" | 48" x 45" x 27" |
| Pump | Diaphragm | Diaphragm |
| Engine | 4 HP Honda GX120 Gas | 4 HP Honda GX120 Gas |
| Flow Rate | 5.8 GPM | 5.8 GPM |
| Pressure | 290 PSI | 290 PSI |
| Hose | 100 ft | 100 ft |
| Spray Reach | 37 ft Vertical / 45 ft Horizontal | 37 ft Vertical / 45 ft Horizontal |
| Dry Weight | 185 lbs | 200 lbs |
| Tank | Poly Tank, Light-Block, Auto-Drain Sump Base | Poly Tank, Light-Block, Auto-Drain Sump Base |
Shared Across All Three Field Boss Models
Every Field Boss UTV skid sprayer ships with the same control and mounting package: Spray-Command controls, a Swing-Arm, Quick-Attach boom brackets, Quick-Connect boom ports, and Time-Saver fork points for loading and unloading.
Field Boss UTV Skid Sprayer Details
The pump is what separates the three Field Boss models, so start there. Pick the high-flow gas model when you need to put down a lot of water fast across a large area. Pick the electric model when you want a quiet 12-volt unit with no gas engine to maintain. Pick the high-pressure gas model when you need pressure and reach to push spray to distance or knock down tall growth. All three share the same poly tank with Light-Block protection and an Auto-Drain sump, load with Time-Saver fork points, and run on Spray-Command controls.
UTV Skid Sprayer Features
- Three pump types: high-volume gas, 12-volt electric, high-pressure gas
- 60 and 100 gallon poly tanks with Light-Block protection
- Quick-Attach boom brackets and Quick-Connect boom ports
- Time-Saver fork points for fast loading
UTV Skid Sprayer Benefits
- Drops into a UTV, ATV, or truck bed with no towing required
- Match flow and pressure to the job
- Auto-Drain sump for easy cleanout
- Boom-ready for spot or boom spraying
UTV Skid Sprayer Downloads
Model feature sheets are being prepared. Contact a Sales Specialist for full specifications on any model.
Field Boss UTV Sprayer Applications

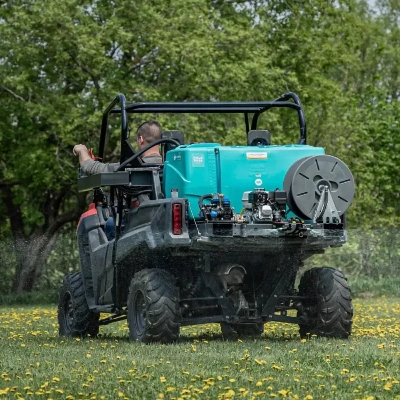

The Field Boss UTV skid sprayer handles spot and boom spraying across working ground. Common uses include vegetation and weed control along fences and right-of-way, food plot and pasture spraying, ranch and ag spot work, landscaping and turf care, and dust and odor knockdown on smaller sites. Match the model to the task. Reach for the high-pressure model when you need distance or have to knock down tall growth, the high-flow gas model when you want volume coverage over acreage, and the electric model for quiet, low-maintenance spot work.
Need help sizing a Field Boss skid to your vehicle and your acreage? Contact us for details. The UTV skid sprayer is often used for:
- Fence Line and Right-of-Way Vegetation Control
- Food Plot and Pasture Spraying
- Ranch and Agriculture Spot Spraying
- Landscaping and Turf Care
- Dust and Odor Knockdown on Smaller Sites
Field Boss UTV Skid Sprayer Frequently Asked Questions
The high-flow and high-pressure Field Boss models run on a 4 HP Honda GX120 gas engine. The electric model runs on a quiet 12-volt diaphragm pump with no gas engine to maintain. Pick gas when you need volume or high pressure, and pick electric for quiet, low-maintenance spot work.
A spray boom may be sold separately. Every Field Boss skid sprayer comes with Quick-Attach boom brackets and Quick-Connect boom ports built in, so a boom can be added whenever you need one. Ask a Sales Specialist about boom setup for your application.
The high-pressure model delivers 290 PSI through a 100 ft hose, with a spray reach of up to 37 ft vertical and 45 ft horizontal. That is the model to choose when you need distance or have to knock down tall growth.
The 60 gallon skid footprint is 48 in long by 38 in wide. The 100 gallon skid footprint is 48 in long by 45 in wide. Measure your UTV bed or truck bed against these dimensions before ordering, and a Sales Specialist can confirm the fit for your vehicle.
