25 Gallon ATV Sprayer
Portable, One-Person ATV Sprayer

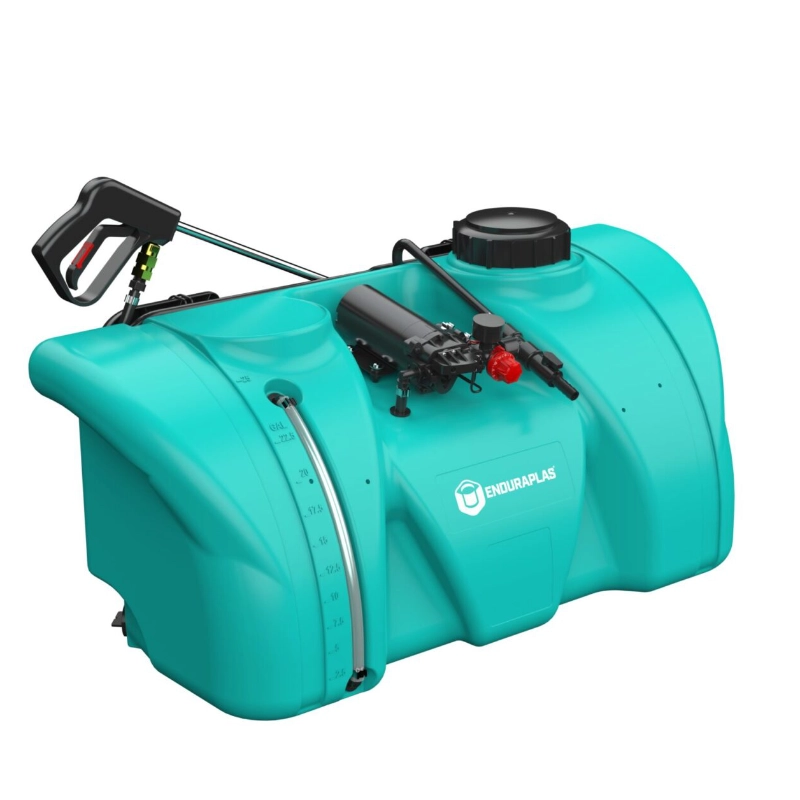

One Clarion's 25 gallon ATV sprayer is the small, grab-and-go unit in our lineup of tank sprayers, built for one person to handle. At 26 pounds dry, this portable ATV sprayer is light enough to lift onto an ATV rack by hand and run off 12 volt power, with no fork-loading, no boom, and no trailer to tow. The solid one-piece roto-molded poly tank holds 25 gallons and drains completely between loads, so changeovers stay clean. A 12V diaphragm pump moves 2 GPM at 60 PSI through a 25 foot hose for trail touch-ups, fence lines, and tight spots a larger skid unit cannot reach. If you need more capacity, a boom, or higher pressure, our 50 and 100 gallon UTV skid units are the step up. This is the lightweight, hand-portable choice for acreage owners, equestrian property, and hobby farms.
Compact ATV Sprayer Specifications
| Specification | 25 Gallon ATV Sprayer |
|---|---|
| Category | ATV sprayer (25 gal) |
| Tank Capacity | 25 gallons |
| Tank | Solid one-piece roto-molded poly tank, fully drainable base |
| Pump | Diaphragm |
| Power | 12 Volt |
| Flow Rate | 2 GPM |
| Pressure | 60 PSI |
| Hose | 25 ft hose |
| Spray Reach | Vertical spray distance 27 ft; horizontal spray distance 35 ft |
| Dimensions (L x W x H) | 18 in x 39 in x 16 in |
| Dry Weight | 26 lbs |
| Frame / Axles / Tires / Brakes / Hitch / GVWR | N/A, not a towed trailer |
| Compliance / Warranty | Made in USA; up to 10-year tank warranty |
Portable, One-Person Sprayer Details
This is the lightest, most portable unit in the range. Where the bigger UTV skids are fork-loaded, the 25 gallon tank here is lifted on and off an ATV rack by hand at just 26 pounds dry. The solid one-piece roto-molded poly tank drains fully between loads, an integrated carry handle makes it easy to move, and a built-in hose wrap plus an on-unit work tray keep the hose and small tools with the sprayer. A 12V diaphragm pump delivers 2 GPM at 60 PSI through a 25 foot hose. Need more capacity or a boom? Step up to our 50 and 100 gallon UTV skid sprayer.
Features
- Solid one-piece roto-molded poly tank, 25 gallon capacity
- Fully drainable base for clean changeovers between loads
- Integrated carry handle for one-person lifting
- Built-in hose wrap keeps the 25 ft hose with the unit
- On-unit work tray for nozzles and small tools
- 12V diaphragm pump, 2 GPM at 60 PSI
- 26 lbs dry, with no frame, axles, or hitch
- Made in USA, with up to a 10-year tank warranty
Benefits
- Light enough for one person to lift onto an ATV rack by hand
- Grab-and-go for trails, fence lines, and tight access
- Full drain leaves no product behind between loads
- Runs off 12 volt power with no gas engine to maintain
25 Gallon ATV Sprayer Downloads
ATV Sprayer for Trails, Fence Lines, and Hobby Farms

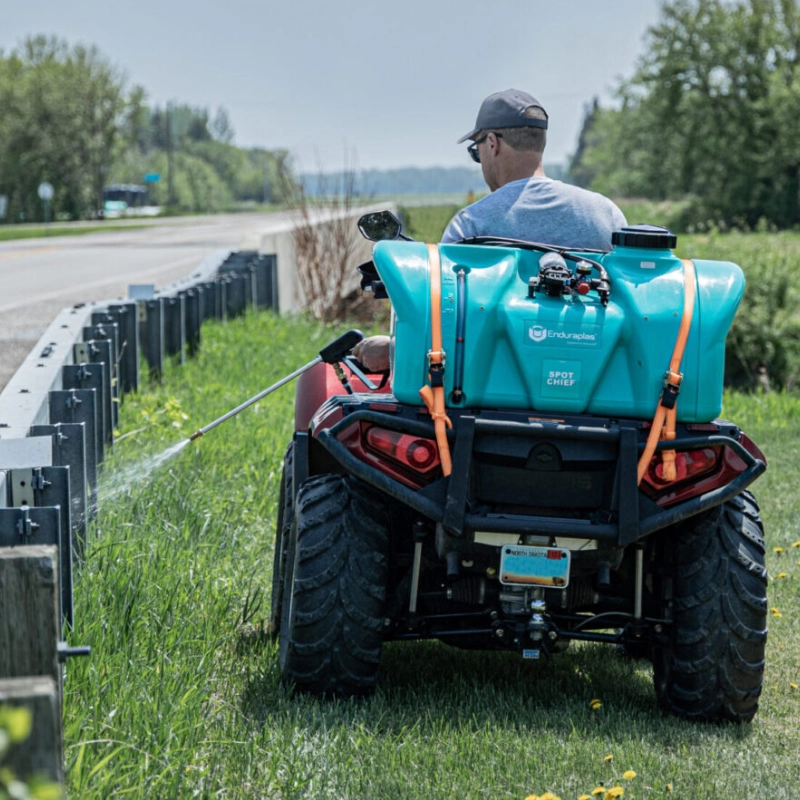

The 25 gallon ATV sprayer fits jobs where a 100 gallon skid is overkill. Use it for trail, path, and fence-line touch-ups, for small lots and tight access an ATV can reach, and around equestrian property, barns, and hobby farms. It works well for quick spot treatment between larger jobs and as a light second sprayer for acreage owners who want something they can grab and go. Think of it as the small, portable complement to a bigger UTV unit. When a job needs more capacity, a boom, or higher pressure, step up to our 60 to 100 gallon UTV sprayers with gas or electric pumps.
Frequently Asked Questions
25 Gallon ATV Sprayer Questions and Answers
It weighs 26 pounds dry (empty), light enough for one person to lift onto an ATV rack by hand. There is no frame, axle, or hitch to add weight, since this is a rack-mounted sprayer rather than a towed trailer.
The footprint is 18 inches by 39 inches by 16 inches. Measure your ATV rack or cargo area against those dimensions to confirm fit. A Sales Specialist can help you check it against your vehicle before you order.
Yes. At 26 pounds dry, the sprayer is built for one person to lift on and off by hand, using the integrated carry handle. Lift it empty, since 25 gallons of liquid adds significant weight when the tank is full.
The 12V diaphragm pump delivers 2 GPM at 60 PSI.
Up to 27 feet vertical and 35 feet horizontal, per the published spec. Actual reach varies with the nozzle setting, the liquid, and conditions.
Yes. It runs on 12 volt power using a 12V diaphragm pump.
