Fuel Tank Trailer

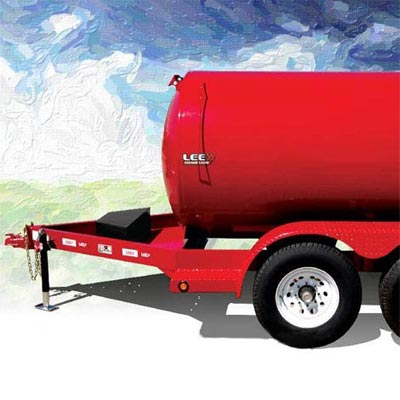

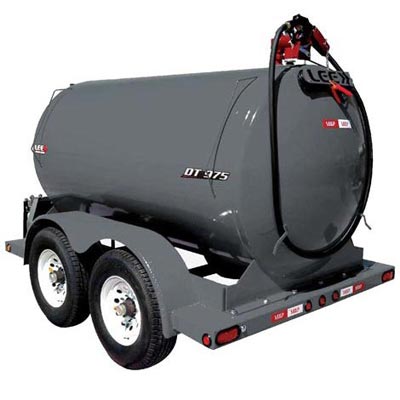

Leeagra 1000 Gallon Diesel Fuel Tank Trailer
The LeeAgra 1000 gallon fuel tank trailer is manufactured to haul diesel fuel. This 1000 gallon baffled fuel tank is equipped to transport class 3 combustible and dangerous goods, predominantly on farms to service equipment. The rounded design of the tank reduces the amount of stress the fuel surge has on a Leeagra fuel trailer when it is in motion.
1000 Gallon Fuel Tank Trailer Features
- Tread plate fenders
- Electric brakes with breakaway switch
- Heavy duty suction pipe
- 12 volt, 20 GPM pump
1000 Gallon Fuel Tank Trailer Benefits
- Highly visible tank
- Multiple powder coat color options
- Rugged trailer frame
- Battery equipped
Diesel Fuel Tank Trailer Details
The diesel fuel tank trailer has a rigid frame that can withstand tough, outdoor conditions when hauling fuel on farmland and dirt roads. The 1000 gallon fuel tank trailer 6" channel frame and gusset plates ensures its safety and sets it apart from other fuel trailers on the market. For even more safety, a Leeagra fuel trailer for sale comes equipped with electric brakes with a breakaway switch.

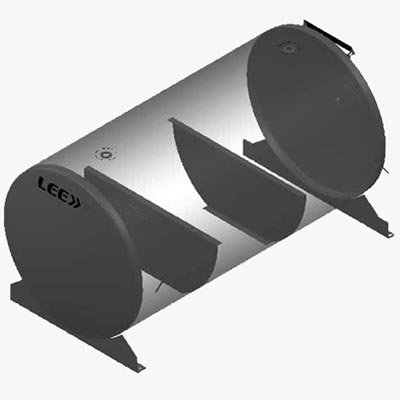

The diesel fuel tank trailer has a dual baffle system to better slow the movement of fuel when the trailer is in motion. The LeeAgra 1000 gallon fuel tank trailer has two baffles made of heavy duty steel to limit the surface area that fuel has to move. The 1000 gallon baffled fuel tank is also equipped with dish ends instead of welded ends to decrease stress points.
LeeAgra 1000 Gallon Diesel Fuel Tank Trailer Specifications
(L x W x H)
|172" x 81" x 88"|
|Dry Weight||2,565 lbs.|
|Axles||2 - 6,000 lbs.|
|Tank Steel||3/16" Plate Steel|
|Tank Color Options||Green, Red, Yellow, White, and Grey|
Fuel Tank Trailer Applications
A Leeagra fuel tank trailer facilitates fuel transport. While a 1000 gallon fuel tank trailer is not DOT compliant for transport on public roadways, this diesel fuel tank trailer is a reliable source of fuel transportation on job sites to service equipment. When needing to transport fuel around a jobsite or on a farm, the Leeagra fuel trailer for sale is a rugged, reliable transport solution.
For more fuel trailer options, see our fuel trailers main page.
Fuel Tank Trailer Frequently Asked Questions
To minimize risk, fuel storage tanks should be grounded. Thankfully, our fuel storage trailers, such as LeeAgra's 1000 gallon fuel trailers, have been properly grounded and are safe to use.
There are various reasons to buy a fuel transport trailer. For anyone wanting to transport fuel, class 3 combustibles or other flammable liquids, our 1000 gallon fuel trailer is a great solution. Fuel can be transported with our trailers to refuel equipment, vehicles, generators, storage tanks and more. The agricultural, farming and oil industries all benefit from using fuel trailers.
