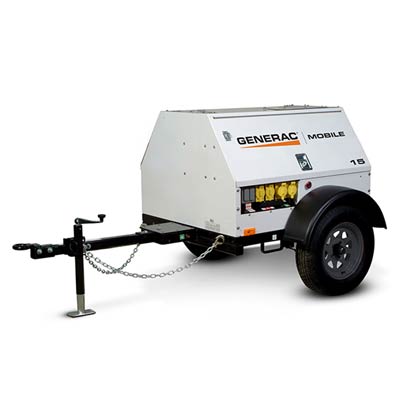

Trailer Mounted Generator
Generac Portable Diesel Generator for Sale
With a portable trailer-mounted generator, take power with you wherever and whenever you need it. Designed to be rugged and for ease of use, the towable generator's 60 Hz diesel engine will provide the power needed. In addition to being built for durability and convenience, this portable diesel generator trailer is DOT compliant and road ready.
Trailer Mounted Generator Features
- 60 Hz/22.3 hp Mitsubishi diesel engine
- EPA Final Tier 4 approved
- Marathon voltage regulation within +/- 1%
- Rubber vibration dampers
- Automatic shutdown system
Trailer Mounted Generator Benefits
- Self-priming engine with and 43 hours run time
- UV protected generator casing
- Fully lockable enclosure keeps the generator unit secure
- DOT compliant trailer for reliable transportation

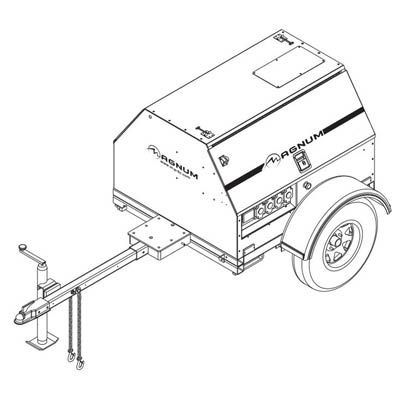

Trailer Mounted Generator Details
This portable diesel generator's design is CSA certified and boasts a long list of features that enhance reliability, ease of use, and a longer field-life. The DOT compliant trailer is made from a full tubular steel frame, with a lockable enclosure. The hinges, exterior hardware and door latches are stainless steel. The diesel generator's enclosure is insulated, baffled, and treated with a durable, UV, and fade resistant coating. The portable generator is powered by a self-priming naturally aspirated Mitsubishi diesel 4 cylinder engine with an output of 22.3 amp at 1800 rpm. The cooling system operates at up to 120 degrees Fahrenheit.
External outlets with individual breaker switches and an hour meter add convenience, along with an easy to access external emergency stop switch, a 4-position key switch (glow plug) to preheat, start, run, or stop the generator. Additional features for safe operation include a 70A start limit main breaker (to prevent overload) and automatic low oil level and high temperature shutdown systems. This sturdy and dependable trailer mounted generator is protected by a manufacturer's 2 year or 2,000-hour warranty.
Generac® Trailer Mounted Diesel Generator Specifications
|Trailer||Dot-Compliant. Dry Weight: 1425 Lbs, Operating Weight: 1823 Lbs, 105 X 68 X 56 Inches. Brake System, Brake Lights, Signal Lights, Side Lights, Safety Chains With Spring Loaded Safety Hooks, Fenders, License Plate Holder, Transportation Tie Downs, 2" Ball Hitch, 2,000 Lbs Tongue Jack With Footplate, 2,200 Lbs Leaf Spring Axel, 6 Ply St205/75r15 Tubeless Tires.|
|Generator||Marathon Electric®, Brushless, 4 Pole, Class H Insulation, Single Phase Output. Marathon Se350 Voltage Regulator With +/- 1% Regulation|
|Engine||Mitsubishi® S4l2-W461ml, Naturally Aspirated Diesel Engine. 4 Cylinder, EPA Final Tier 4 Approved. Polyethylene 56 Gallon Fuel Tank, Cooling System, Rubber Vibration Dampers, Full Flow Oil Filter, Fuel Filter With Replaceable Element|
|System Controls||Four Position Keyed Switch-Glow Plugs, Hour Meter, Automatic Low Oil And High Temperature Shutdown System, Engraved Aluminum Punched And Anodized Control Panel.|
|Electrical Controls||70a Start Limit Breaker, 440 CCA Wet Cell Battery, Receptacles With Individual Breakers (120v 20 Amp GFI Duplex Outlets, 240v 30 Amp Twistlock Outlets, 240v 50 Amp Twistlock Outlets.|
|Generator Enclosure||Fully Lockable Insulated Enclosure With Stainless Steel Hinges, Door Latches And Exterior Hardware. Emergency Stop Switch On Front Panel. Multi-Lingual Operating And Safety Decals. Enclosure Is High Temperature Cured And Coated With UV And Fade Resistant Polyester Powder Paint. Document Holder With Operating manual Including Ac/Dc Wiring Diagrams.|
|Manufacturer's Warranty||2 years / 200 hours|
Portable Generator Trailer Applications
Use this portable generator trailer on small to mid-sized construction or job sites, disaster recovery locations, special events, or even just as a backup power source. Contact us for Trailer Mounted Generator prices. See the complete list of specifications here.
Trailer Mounted Generator Frequently Asked Questions
Trailer Mounted Generator Questions and Answers
Absolutely. The diesel generator is mounted to a well-built trailer that meets the DOT requirements for safe use on public roads. This includes such features as a braking system, brake lights, signal lights, side lights, fenders, safety chain, and license plate holder. Please see the "Trailer" section in the specifications above for a full list of features or contact us for more information.
The portable diesel generator trailer is both very dependable and simple to use. The 4 cylinder Mitsubishi engine is self-priming. There's a 4 position switch (preheat, start, run, stop) and an hour meter. Instructions are mounted on the generator's external case in several languages. The operator manual is also mounted on the case for easy access. There are multiple external outlets (with individual breaker switches) for easy access. The cooling system will facilitate operation at higher temperatures, but there is also a shutdown system for low oil or high temperatures, to prevent the towable generator from overheating.
For starters, the trailer has the DOT requirements for safe operation on public roadways. The generator has an emergency shut-off switch that is mounted on the exterior case and is very quick to access. The portable generator trailer's operating and safety instructions are bilingual and are also mounted on the exterior of the generator.
