Dust Control Sprayer

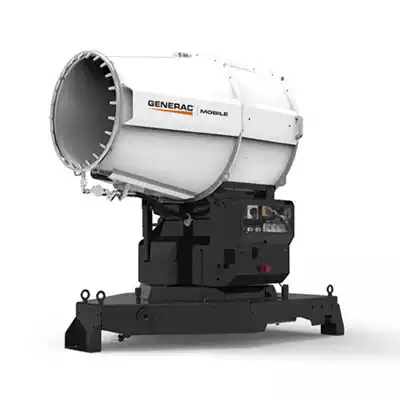

Generac® Dust Suppression Spray System

Powerful and portable, the dust control sprayer is a commercial grade tank sprayer designed for large outdoor work sites. Stay in compliance with the Generac dust control sprayer and its proven on-the-job performance.

Get a Quote   or Call us! 863-261-8388

Dust Control Sprayer Features

  • Electro polished stainless-steel crown and nozzles
  • Integrated control panel with remote control
  • Skid mounted with DOT trailer option

Dust Control Sprayer Benefits

  • Spray ranges up to 131 feet horizontally, 52 feet vertically
  • Total coverage is up to 49,514 square feet
  • Automatic oscillation system

Portable Dust Control Sprayer Details

Remove dust and harmful particulate from the air effectively with the dust control sprayer's superior results. Traditional dust suppression equipment only captures large dust particulates and leave pockets of untreated areas. Besides being inefficient, that can be hazardous and potentially cause your work site to be out of compliance. With this dust suppression spray system, water is nebulized into tiny 50-150 micron droplets. For comparison, droplets from a garden hose spray are approximately 1000 microns in size. The ultra-fine mist produced by the dust suppression spray system is much more effective in removing greater quantities of particulate matter from the air.

Maximizing its coverage, the dust control sprayer is vertically adjustable from 0 to 40 degrees and has a horizontal rotation of 335 degrees. Its horizontal coverage broadcasts up to 131 feet, and vertical coverage up to 52 feet. The dust control sprayer's maximum area of coverage is 49,514 square feet, leaving no untreated pockets and minimizing wasted water or puddling.

The Generac dust control sprayer's standard features include: automatic oscillation system, phase inverter, inlet water filter, and booster pump with peripheral impeller. The dust suppression spray system's electric tilting mechanism eliminates the need for manual angle adjustments, and the pressure gauge helps with monitoring the outlet's pressure reading. The flowmeter helps protect the pump. Handles and wheels make maneuvering easy. For greater mobility in the field, the dust control sprayer is skid-mounted and equipped with lifting eyes and fork pockets. DOT Trailer mounted options are also available.

Portable Generac Dust Control Sprayer DF 7500 Specifications

Electrical Engine Power (Fan) 7.5kW
Electrical Engine Power (Pump) 2.2kW
Electrical Connection 240V 3-phase - 32 A
Max. Horizontal Range(Without Wind) 98-131 feet
Max. Vertical Range(Without Wind) 52 feet
Maximum Covered Area 49,514 FT(2)
Water Connection 1" Hose Barb
Water Inlet Filter 180
Water Consumption 13.7 GPM
Tilt Angle Range 0 – 40°
Rotation Angle Range 335°
Dry Weight (Skidded) 1,993 LBS

Portable Dust Control System Applications

The Generac portable dust control spray system delivers effective dust and particulate mitigation for demolition sites, construction sites mining operations, aggregate production, environmental repairs, and recycling processing. It is also effective in odor suppression at landfills, cooling/misting outdoor events, and misting crops.

Frequently Asked Questions

Portable Dust Control Misting System Frequently Asked Questions

This dust control misting system works by nebulizing water into tiny particles that produce an even and fine spray. The spray then captures the other particles that it encounters and uses gravity to bring or hold them both to the ground. Traditional dust suppression equipment is not nearly as effective because it produces larger water droplets, as well as large gaps of uneven coverage.

This portable dust control system is very easy for operators to use in the field. The controls are intuitive and simple to follow. The tank sprayer unit's handles and wheels provide easy maneuverability. The equipment can be adjusted vertically with the manual tilting system from 10 to 50 degrees for maximum spray coverage. If needed, the E-stop (emergency stop) button is mounted prominently where it can be found quickly.
