Nurse Trailer

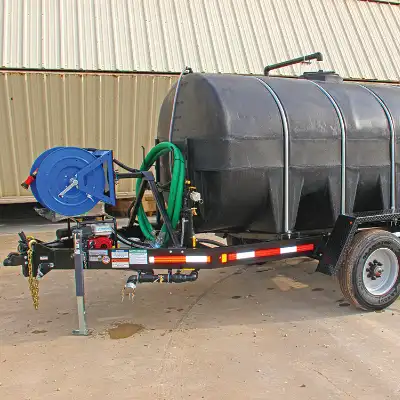

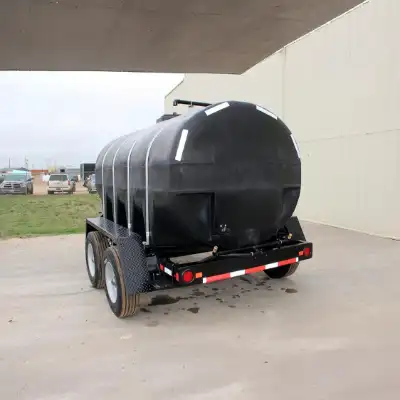

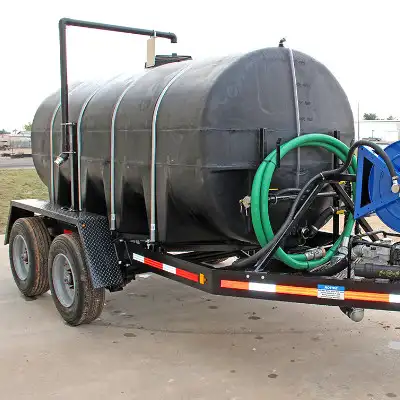

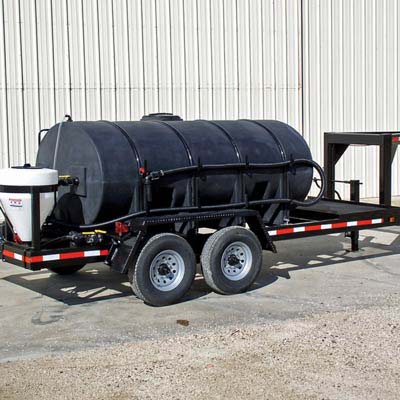

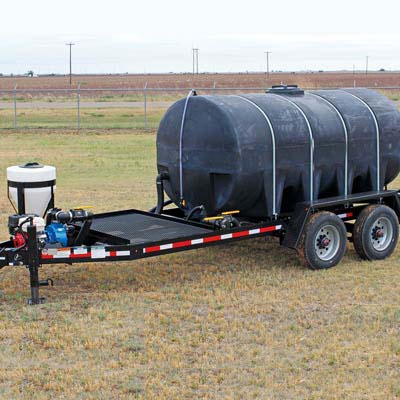

2010 Gallon Nurse Trailer

The 2010 gallon nurse trailer is built for big jobs in industry and agriculture. The 2010 gallon nurse trailer is available in DOT and non-DOT models with either a gooseneck or tag hitch. Options for the nurse tank trailer for sale include a mix-n-fill tank, CDS-John Blue wet seal centrifugal pump kit, quick fill and Sparger valve, and a sight gauge for black tanks.

Considering financing? Click here to apply for financing options for this product!

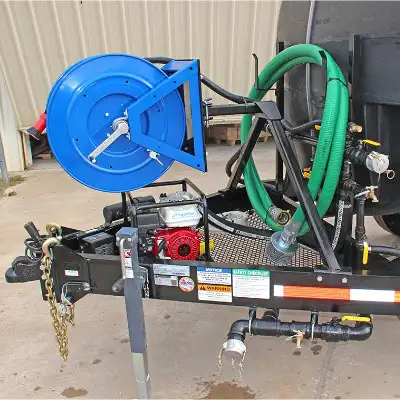

2010 Gallon Nurse Trailer Features

  • 2,010 Gallon Polyethylene Tank
  • Rear Spray Bar w/Dual Nozzles
  • 5.5 HP Honda GX160 Gasoline Engine
  • 20’ Suction / Fill Hose
  • 2” High Pressure Tsurumi Pump
  • Suction Strainer w/Fire Hydrant Adapter
  • Max Flow 100 GPM at 100 PSI
  • Side Fan Spray Nozzle
  • 1”x100’ Rubber Fire Hose
  • 2” Galvanized Discharge Manifold
  • Manual 180º Swivel Hose Reel
  • PVC AntiSiphon Fill Kit
  • 1.5” x 50’ White Mill Fire Hose
  • 12v Electric Outlet Valve for Spray Bar
  • Amber Beacon Light & Backing Signal
  • Remote Key Fob for Electric Valve
  • 2 LED Work Lights (Front & Rear)
  • Spare Tire
  • Chrome Diamond Tread Tool Box
  • Walkway Fenders & Tool Rack

2010 Gallon Nurse Trailer Details

Built for big jobs, use the 2010 gallon nurse trailer to transport non-petroleum liquids or for large spraying operations. The 2000 gallon nurse trailer actually features a 2,010-gallon elliptical full drain tank and chemical tote platform, all seated securely on the sturdy 7" channel iron frame with tandem 10,000 lb axles. The tag hitch trailer incudes an Intelli-Hitch microprocessor, eliminating the need for a brake controller beneath the dashboard.

The 2010 gallon nurse trailer is available in a DOT model for use on public roadways. In addition to being fully DOT compliant, this model also includes heavy duty walkway fenders for easy access to the tank lid. If the Nurse Trailer will be used only on site with no need for the DOT required components, consider the on-farm (non-DOT) model that utilizes the same sturdy trailer base. Both models include the chemical tote platform. The tank is full-draining and can be filled through the tank lid or the quick-fill fitting.

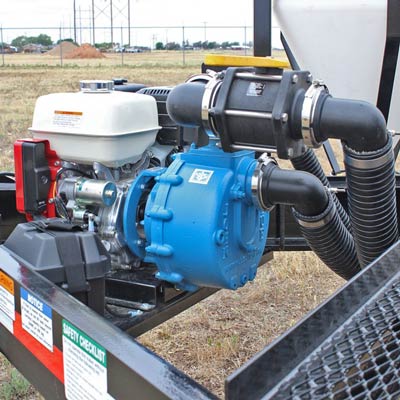

Additional options enhance speed and ease of use, such as the 30-gallon mix-n-fill tank. The CDS-John Blue wet seal centrifugal pump kit is another popular option, coupled with a Honda engine and 3" plumbing to facilitate quicker flow from the trailer to the sprayer.

2010 Gallon Nurse Trailer Specifications

Length 26'
Width 8'
Height 8 ft. (w/o anti-siphon fill kit)
Wheel Track 75.75"
Size (US Gallons) 2010
Tank Color Black
Dry Weight (lbs) 3,140 lb - 4,260 lb Depending on Hitch
Tires 235/75/R17.5
Capacity 2,010 Gallons
DOT Compliant Yes
Frame Construction 7” Channel Iron
Finish Powder Coat Black Acrylic
Axle(s) 10k Tandem - Wet Hub
Hitch 3” I.D., 6” O.D. Pintle Ring
Tank Type 2010 Gallon Black “Algae Resistant” Tank
Empty Weight 4,300 lbs.
GVWR 21,500 lbs
Brakes Electric
Motor Honda Engine
Pump 2” High Pressure Tsurumi Pump
Fill PVC Anti-Siphon Fill Kit
Lights DOT Approved LED Lights
Warranty 3 years on tank - 1 year on all components and frame


Flyer to Download: 2010 Accessories (PDF)

Nurse Trailer Applications

Nurse trailers are used in agricultural and industrial applications that use big sprayers and need a larger tank to supply the volume of liquid needed. They are also used for transporting large volumes of water or other non-flammable liquids. The nurse trailer is approved for use with water, fertilizers, insecticides, herbicides, and other non-petroleum-based fluids.

For freeze protection for your water trailer or skid, our Water Trailer Heater Blankets are exactly what you need . When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!

Nurse Trailer Frequently Asked Questions

Nurse Trailer Questions and Answers

The 2000 gallon nurse trailer is available in two models. One is approved by the manufacturer as DOT compliant and can be used on public roadways. The other model uses the same trailer frame but eliminates unnecessary DOT requirements for those who would not use the trailer off grounds at their facility.

The nurse trailer can be used for drinking water transportation if you request a potable water tank when placing your order. Otherwise, the tank provided is not rated for drinking water use. Please be certain to explain how you wish to use the nurse trailer when you chat or email with our service assistant.
