Pressure Washer Water Tank Trailer
Pressure Washer Trailer for Sale
Our pressure washer water tank trailer has been designed around the need for multi-function equipment. The dual purpose water trailer has a spray bar for dust suppression at a construction site, along a dirt gravel road, or at an arena.
Pressure Washer Features
- Dust Abatement — 2” Tsurumi Transfer Pump w/4 HP Honda
- Dust Abatement — Dual Nozzle Spraybar/25’ Swath
- Dust Abatement — 20’x2” Suction Hose; 25’x1½” Firehose

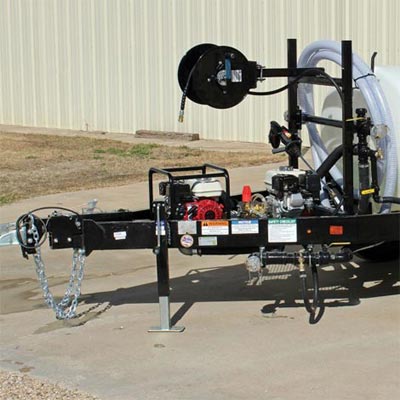

- Pressure Washer — Triplex Pump 3 GPM@2,700 PSI/ 5 HP Honda

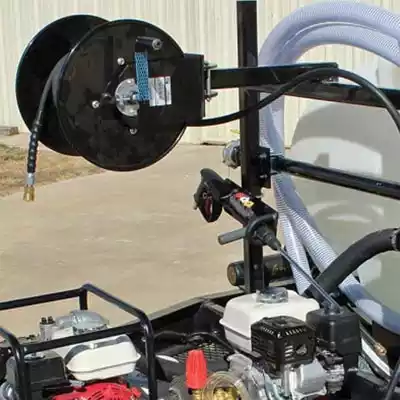

- Pressure Washer — Hand Crank Reel on Swivel Mount; 25’ Hose
- Pressure Washer — Trigger Gun w/4 nozzles
- Pressure Washer — Downstream Low Pressure Soap Application
Dust Control Features
- 2" transfer pump and 4 HP Honda motor
- Dual nozzle spray bar with a 25' swath
- 20' x 2" suction hose
- 25' x 1-1/2" firehose
Pressure Washer Water Tank Trailer Details
The pressure washer water tank acts as a mobile pressure washer unit with special built-in tools such as a trigger gun and applicator for washing equipment, buildings, parking lots, or vehicle fleets.
The self-contained pressure washer water tank trailer comes standard with a high-strength polyethylene tank and a tandem axle steel trailer. Our system uses one 500 gallon polyethylene water tank for two separate functions. When you are using the cold water pressure washer trailer side you have a triplex pump and a 5hp Honda motor giving you 3 GPM at 2700 PSI with the trigger gun with 4 nozzles. If you need it to be a dust control trailer then you have a 2" transfer pump, 4hp Honda Motor supplying the dual nozzle spray bar capable of a 25 foot swath, a 20 foot x 2" Suction Hose and a 25 foot by 1-1/2" Firehose. The best of both worlds built into one dual purpose trailer.
500 Pressure Washer Water Tank Trailer Specifications
| Dust Abatement Pump | 2” Tsurumi Transfer Pump w/4 HP Honda |
|---|---|
| Dust Abatement Spraybar | Dual Nozzle/25’ Swath |
| Dust Abatement Hoses | 20’x2” Suction Hose; 25’x1½” Firehose |
| Pressure Washer Pump | Triplex Pump 3 GPM@2,700 PSI/ 5 HP |
| Pressure Washer Hose Reel | Hand Crank Reel on Swivel Mount; 25’ Hose |
| Pressure Washer Spray Gun | Trigger Gun w/4 nozzles |
| Tank | 500 Gallons |
| GVWR | 6,000 lb |
| Axles | Tandem with Springs |
| Tires | ST225-75D15 |
| Brakes | Surge |
| Length | 174” |
| Width | 78” |
| Height | 65” |
| Trailer Frame | 6” Channel Iron with LED Lights |
Dual Purpose Trailer for Pressure Washing and Dust Control
The dual purpose trailer is designed to be both a pressure washer trailer and dust control trailer all in one user-friendly and convenient unit. The custom pressure washer trailer is DOT-rated and has a low center of gravity for easier transportation between job sites. Combined with the versatile 500 gallon poly tank, the dual purpose trailer is a double threat you should have in your arsenal. The cold water pressure washer trailer combined with a dust control trailer makes it a highly capable and adaptable water spraying equipment for your site.
For freeze protection for your water trailer or skid, our Water Trailer Heater Blankets are exactly what you need . When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!
Downloads:
Flyer to Download 500 Pressure Washer (PDF)
Frequently Asked Questions
Pressure Washer Water Tank Trailer Questions and Answers
Our pressure washer water tank trailer has both a spray bar for dust control and a triplex pump with 2700 PSI and pressure washing attachments. It's the perfect blend for both applications in one trailer.
The trailer comes with a 2" x 20' suction hose, a 1-1/2" x 25' fire hose and nozzle, and a dual nozzle spray bar. There are many options that can be added such as a ½" hose for washing or watering and longer fire hoses.
