Configuration Guide

Water Trailer Spray Bar Coverage Guide

A practical configuration guide for sports turf managers, landscape contractors, grounds crews, and maintenance teams choosing between spray bars, hose reels, rear spray, side spray, and coverage-control setups. Covers how each discharge method shapes where water goes, how evenly it lands, and which configuration fits broad coverage, spot watering, or route-based landscape maintenance.

See the Setup Checklist Talk to a Sales Specialist

What Spray Bars, Hose Reels, and Coverage Controls Actually Do

The right water trailer setup depends on how the water needs to be applied. Some jobs need broad, even coverage across turf, fields, parks, or roads. Others need targeted watering for trees, beds, dry spots, or hard-to-reach areas. This water trailer spray bar coverage guide compares spray bars, hose reels, rear spray, side spray, and spray pattern controls so sports turf managers, landscape contractors, and grounds crews can match the discharge configuration to the watering task before specifying a trailer.

Three components shape how water leaves a trailer and reaches the ground: the spray bar that produces broad coverage, the hose reel that supports operator-directed watering, and the coverage control parts (nozzles, valves, and spray direction) that fine-tune the pattern. Most landscape and sports turf jobs use one of these as the primary method and the others as backup. The right combination depends on the watering area, the surface, the access path, and the crew workflow.

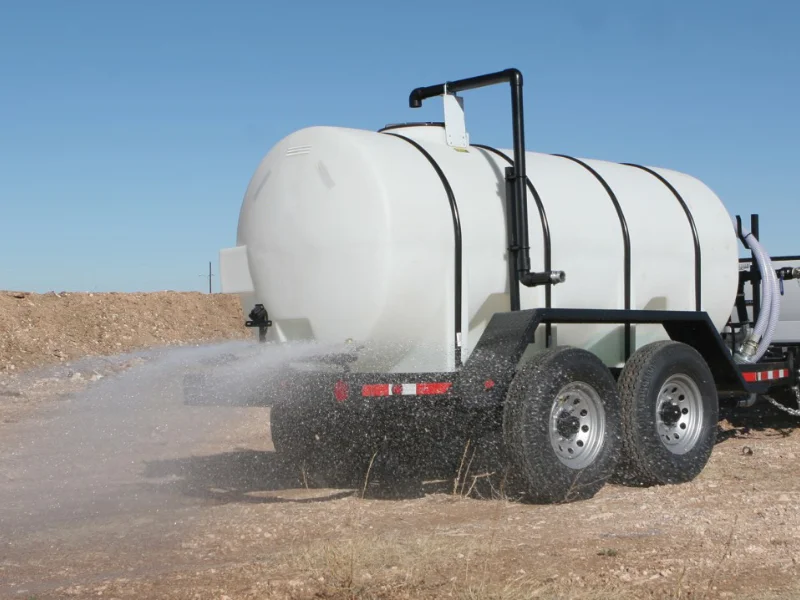

[CARD 1 ALT — e.g. spray bar applying water across turf]

Broad Coverage

Spray Bars: Even Application Across an Area

A bar runs water across a wider strip as the trailer moves. Best suited for turf, fields, lanes, and route-based watering.

Use case · turf, fields, roads, lanes

[CARD 2 ALT — e.g. operator using hose reel to water a tree]

Targeted Watering

Hose Reels: Operator-Directed Spot Watering

A reeled hose with a nozzle lets the operator water trees, beds, dry spots, and locations the trailer cannot drive over.

Use case · trees, beds, dry spots, medians

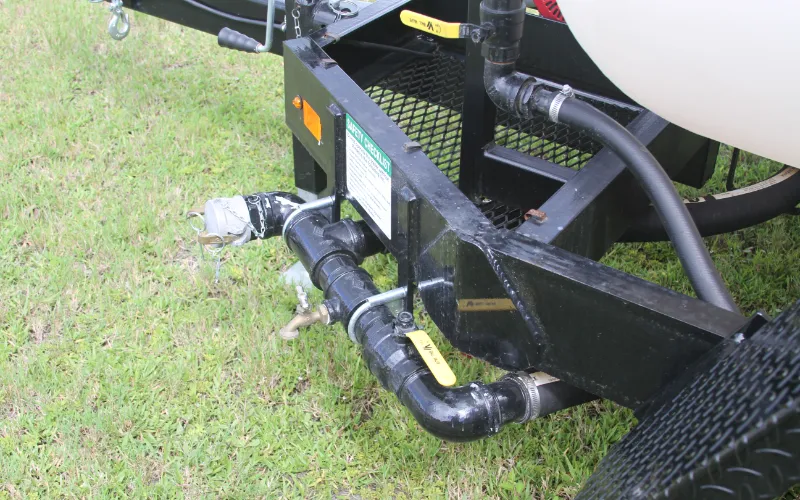

[CARD 3 ALT — e.g. nozzle and valve adjusting spray pattern]

Pattern & Direction

Coverage Control: Where the Water Goes

Nozzles, valves, and spray direction shape the pattern, control overspray, and let the crew slow or stop discharge on the move.

Use case · pattern, direction, overspray control

[CARD 4 ALT — e.g. trailer equipped with both spray bar and hose reel]

Combined Setup

Spray Bar Plus Hose Reel on the Same Trailer

A single trailer can carry both a bar and a reel. The bar covers the routed area; the reel handles plantings the bar cannot reach.

Use case · mixed turf and landscape sites

Why Coverage Control Matters

Coverage control affects how evenly and efficiently a crew can apply water. The right setup helps the team avoid overwatering, reduce missed areas, improve consistency on route-based maintenance, protect turf and landscaped areas, and keep water away from sidewalks, roads, and pedestrians.

✓ Avoid overwatering and runoff on turf and landscaped areas
✓ Reduce dry spots and missed sections on route-based watering
✓ Improve consistency across repeat passes
✓ Keep water away from sidewalks, roads, pedestrians, and parked vehicles
✓ Match the discharge setup to the watering task instead of forcing one method to handle every site

Water Trailer Hose and Spray Bar Setup

The first configuration decision is usually whether the trailer needs a hose-based setup, a spray bar setup, or both. The choice depends on the watering target, the surface, the access path, and how the crew expects to work the job.

A hose-based setup centers on a reeled hose with a hand-held nozzle. It is the better fit for targeted watering of trees, planting beds, dry spots, and locations where the trailer cannot drive directly over the watering area. The operator walks the hose to the target and controls flow at the nozzle.

A spray bar setup centers on a bar mounted to the trailer that releases water across a wider strip as the trailer moves. It is the better fit for broad, even coverage on turf, fields, parks, and roads where the trailer can travel through the watering area. The crew controls coverage by managing tow speed, pass spacing, and on/off timing.

Many landscape and sports turf operations specify both on a single trailer. The bar handles the routed area; the hose handles plantings, dry spots, and edges. A water trailer hose and spray bar setup on the same unit lets one crew cover broad turf areas and follow up on targeted watering without switching trailers.

Rear Spray Bar vs Hose Reel Water Trailer

A rear spray bar vs hose reel water trailer is one of the most common comparison questions because the two setups serve different jobs. Neither is universally better. The right choice depends on the watering pattern, the surface, and where the trailer can travel.

Rear Spray Bar Fits

Broad, Route-Based Coverage

✓ Turf and field watering
✓ Park lawns and recreation areas
✓ Road or lane wetting
✓ Consistent pass coverage
✓ Sites where the trailer can move through the watering area

Hose Reel Fits

Targeted, Operator-Directed Watering

✓ Trees, shrubs, and new plantings
✓ Planting beds and ornamental areas
✓ Dry spots and hard-to-reach corners
✓ Sites where the trailer cannot drive over the target
✓ Watering near sidewalks, buildings, or medians

Mixed sites with turf, plantings, and edges generally benefit from both setups on the same unit. A Sales Specialist can review the route and recommend the configuration.

How to Choose Water Trailer Spray Bar Width

Spray bar width should match the watering area and the access path. A bar that is wider than the lane the trailer can travel through becomes a problem the moment the trailer reaches a tight turn or an obstacle. A bar that is narrower than the watering area forces extra passes that waste time and water. The list below covers the practical planning points to walk through before specifying width.

Width of the area being watered.
Measure the typical watering surface. Open turf and athletic fields support wider bars. Narrow medians, planted strips, and edged lawns call for narrower bars.
Surface the trailer will travel on.
Turf, pavement, gravel, and unprepared field surfaces each support different trailer weights and movement patterns. The width that works on a paved road may not work across soft turf or wet ground.
Rear spray, side spray, or both.
Rear spray suits route-based watering across an open area. Side spray suits watering off the side of a travel path such as a roadside shoulder or a planted strip. Some jobs need both directions.
Access path width.
Narrow gates, pinch points between buildings, and edged paths limit how wide a bar can extend in service. Confirm the narrowest point on the route before committing to a width.
Whether overlapping passes are practical.
If the crew can make overlapping passes, a narrower bar can still cover a wide area over multiple trips. If the trailer only gets one pass per area, a wider bar saves return trips.
Site obstacles.
Trees, fences, curbs, sidewalks, light poles, and parked vehicles all set a practical upper limit on bar width. Walk the route before deciding.

Exact width recommendations depend on the trailer model, the pump, and the watering target. A Sales Specialist can match width to the application once these planning points are answered.

Water Trailer Spray Pattern Control

Water trailer spray pattern control covers the direction, width, and intensity of the discharge. Pattern control is what lets a crew apply water to the target and not to the sidewalk, the building wall, the parked car, or the pedestrian on the path next to it.

Several factors shape the spray pattern on a working trailer:

✓ Spray direction (rear, side, or both)
✓ Spray width set by the bar or nozzle
✓ Nozzle selection (flat fan, full cone, adjustable, or specialty)
✓ Valve setup and the operator's ability to throttle flow
✓ Travel speed of the towing vehicle
✓ Surface type and how it absorbs or sheds water
✓ Distance from the bar or nozzle to the watering target
✓ Wind direction on outdoor jobs

Pump-driven discharge generally offers more pattern control than gravity discharge because the operator can adjust pressure. A Sales Specialist can match nozzle and valve choices to the watering task once the application is defined.

Water Trailer Coverage Control Options

A water trailer can be configured with different water trailer coverage control options depending on the application. The list below covers the discharge methods most commonly specified on sports turf and landscape water trailers. The right combination depends on the watering pattern, the surface, the access path, and the crew workflow.

✓ Rear spray bar for broad, route-based watering on turf, fields, parks, and roads
✓ Side spray for watering off the side of a travel path such as a roadside shoulder, median, or planted strip
✓ Hose reel with hand nozzle for targeted watering of trees, beds, dry spots, and hard-to-reach areas
✓ Nozzle selection to control spray pattern, width, and intensity
✓ Valve-controlled discharge to start, stop, and throttle flow during a pass
✓ Pump-assisted discharge for more consistent pattern control and longer hose runs
✓ Gravity-feed discharge where the watering task does not require pressure
✓ Combined spray bar and hose reel setup on a single trailer for mixed turf and landscape sites

Exact configuration is a Sales Specialist conversation. The trailer capacity, the pump (if any), the discharge method, and the accessories should all be matched to the watering task on the route.

Setup Selection Checklist

A scannable list to walk through before requesting a quote. Print it, attach it to a project brief, or use it as a planning sheet for a route walkthrough.

Spray Bar & Coverage Control Setup Checklist

Watering target identified (turf, fields, parks, beds, trees, medians, dry spots, roadside).
Surface the trailer will travel on documented (turf, pavement, gravel, field).
Access path measured at the narrowest pinch point on the route.
Discharge method selected (rear spray bar, side spray, hose reel, or combination).
Spray width matched to the watering area and the access path.
Coverage control options chosen (nozzle type, valve setup, pump or gravity discharge).
Overspray boundaries noted (sidewalks, buildings, vehicles, pedestrians, neighboring properties).
Pass plan sketched (single pass or overlapping passes; route loop or out-and-back).
Crew workflow documented (single operator or two-person; tow vehicle and driver).
Trailer capacity matched to the watering task and the available tow vehicle.

Trailers Configured for Coverage Control

Sports turf and landscape water trailers can be configured to support different coverage-control needs. The trailers below cover the most common capacity range for turf, fields, parks, medians, and landscape beds. Final configuration (spray bar width, hose reel, pump, nozzle, valves) should be matched to the watering task with a Sales Specialist.

550 Gallon Landscape Water Trailer

Compact trailer for tight access paths, planted strips, and small turf areas with rear or side spray support.

2" Pump Galvanized Spray Bar With Dual Nozzles

✓ Fits narrow access paths and edged lawns

View Details

[PRODUCT 2 ALT — e.g. mid-capacity sports turf water trailer]

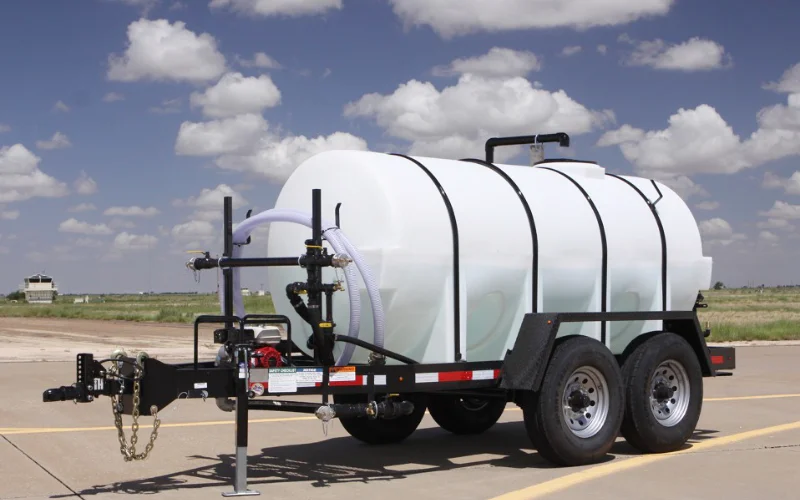

1025 Gallon Sports Turf Water Trailer

Mid-range trailer for turf, fields, parks, and route-based maintenance with combined spray bar and hose reel options.

Galvanized Spray Bar Optional Hose Reel

✓ Supports broad coverage and spot watering on the same unit

View Details

[PRODUCT 3 ALT — e.g. larger-capacity landscape water trailer]

1600 Gallon Landscape Sprayer Water Trailer

Higher-capacity trailer for larger turf areas, longer routes, and crews covering multiple sites in a single trip.

Galvanized Spray Bar With Dual Nozzles 2" Water Pump

✓ Reduces refill trips on longer maintenance routes

View Details

For accessory selection (nozzles, valves, hose lengths, reel mounts), see water trailer accessories.

18+

Years configuring landscape water trailers

Same-Day Quotes

Family-Owned Since 2008

DOT & Non-DOT Options

Frequently Asked Questions

A water trailer spray bar coverage guide compares the discharge options available on landscape and sports turf water trailers. It walks through spray bars, hose reels, rear spray, side spray, nozzle selection, and spray pattern controls so a buyer can match the configuration to the watering task before specifying a trailer.

Match the spray bar to the watering area and the access path. Consider the width of the surface being watered, whether the trailer can travel on turf or pavement, whether overlapping passes are practical, and whether obstacles such as trees, curbs, or parked vehicles limit movement. A Sales Specialist can recommend a width once the application is defined.

Neither is universally better. A spray bar is the stronger choice for broad, even coverage across turf, fields, or roads. A hose reel is the stronger choice for targeted watering of trees, beds, dry spots, and hard-to-reach areas where the trailer cannot drive directly over the watering target. Many landscape operations specify both.

Rear spray applies water behind the trailer as it moves forward, which suits route-based watering of turf, fields, or roads. Side spray applies water off the side of the trailer, which suits situations where the trailer travels along a path beside the area being watered, such as a roadside shoulder, median, or planted strip.

Yes. Many landscape and sports turf trailers are configured with a spray bar for broad coverage and a hose reel for targeted spot watering on the same unit. The combined setup lets a single trailer support both route-based watering and operator-directed watering on the same job.

Spray pattern is shaped by nozzle selection, valve setup, the direction the bar is aimed, the spray width, the travel speed of the towing vehicle, and the surface being watered. Pump-driven discharge offers more pattern control than gravity discharge. A Sales Specialist can match these factors to the watering task.

Common options include rear spray bars, side spray, hose reels with hand nozzles, valve-controlled discharge, pump-assisted discharge, and gravity-feed discharge where appropriate. Trailers can be specified with a single option or a combination depending on the watering pattern, route, and crew workflow.

Turf, fields, and park lawns generally favor a spray bar setup for even coverage. Landscape beds, trees, and shrubs generally favor a hose reel for targeted watering. Mixed sites with turf and plantings often use a combined spray bar and hose reel configuration on the same trailer.
