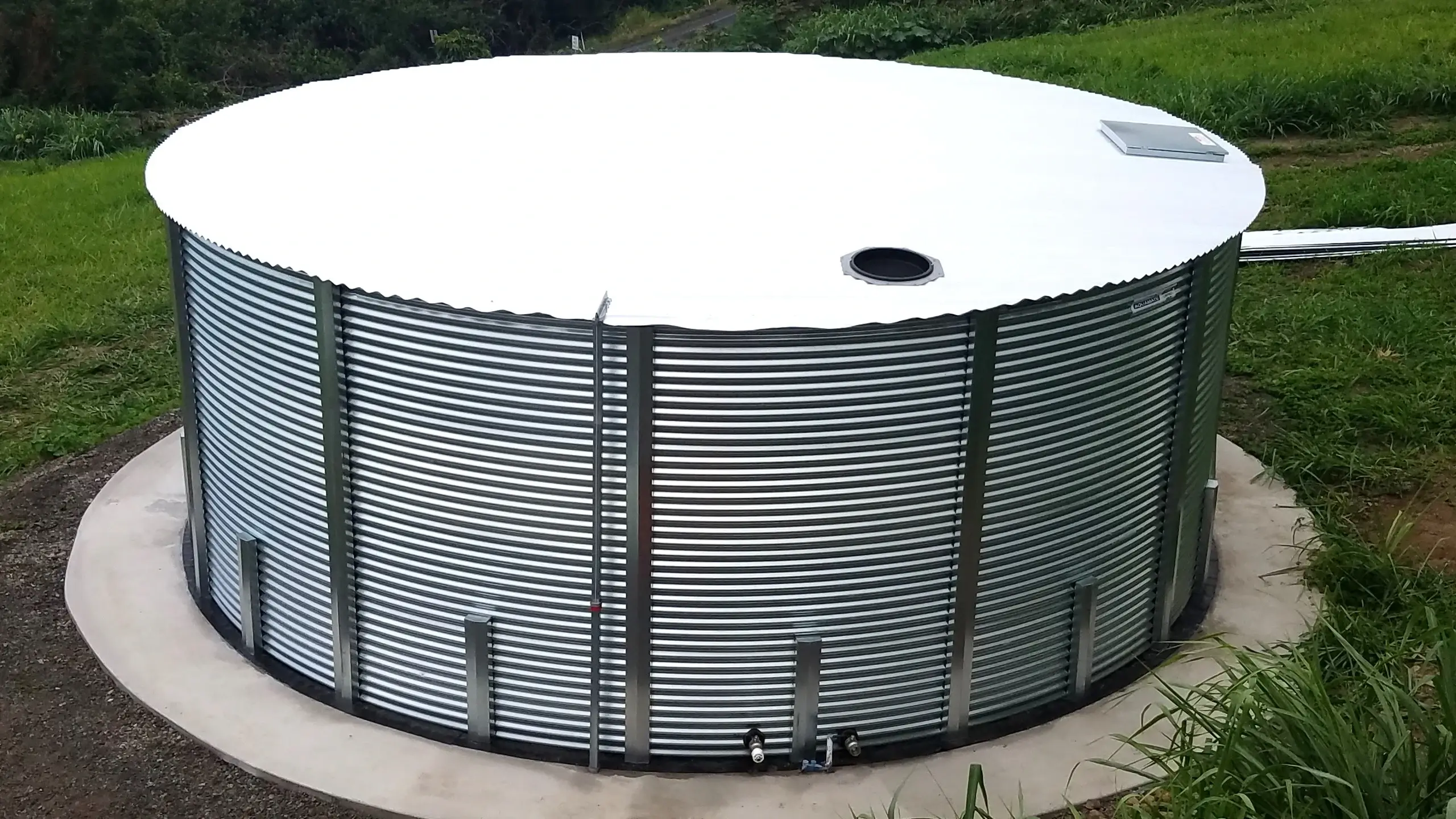

Corrugated Water Tank Sizes
5,000 to 102,000 Gallons
One Clarion provides 5000 gallon to 102,000 gallon corrugated tanks, with larger tanks available upon request. Our corrugated water tanks save you up to 50% over competitor prices and are made to last. We use only quality materials and we offer a 20 year warranty.
Our water tanks are different because they are specifically designed to save money while providing long lasting water storage. Our steel water tanks use only heavy-duty galvanized steel panels, with the thickest protective coating available. We include a flexible food-grade potable-water approved poly liner that is not prone to cracking (unlike many other liners in the market).
Put 30+ years of making quality corrugated water tanks to work for you!
Water Tank Sizes
Available in 5000 gallon, 12,000, 50000 gallon water tanks and other sizes too! Find the size you need, specifications (specs), and drawings are listed below. Custom sizes are available too! Not sure what size you need? We have a tank calculator that might help!
| Gross Volume | Tank Diameter | Cistern Height | Details (click here) | |
|---|---|---|---|---|
| 5,000 gal | 10'7" | 7'3" | Specs | Drawing |
| 12,000 gal | 17'1" | 7'3" | Specs | Drawing |
| 16,000 gal | 17'1" | 9'6" | Specs | Drawing |
| 28,000 gal | 25'7" | 7'3" | Specs | Drawing |
| 37,000 gal | 25'7" | 9'6" | Specs | Drawing |
| 50,000 gal | 34'2" | 7'3" | Specs | Drawing |
| 65,000 gal | 34'2" | 9'6" | Specs | Drawing |
| 77,000 gal | 42'8" | 7'3" | Specs | Drawing |
| 102,000 gal | 42'8" | 9'6" | Specs | Drawing |
Roof Sheet Layout
| Gross Volume | Type | Coverage | Tank Diamater | Details (click here) | |
|---|---|---|---|---|---|
| 130" Diamater | 5,000 gal | Full Length | 32" | 130" | Drawing |
| 205" Diamater | 12,000 gal | Full Length | 32" | 205" | Drawing |
| 307" Diamater | 28,000 gal | Full Length | 32" | 307" | Drawing |
| 409" Diamater | 50,000 gal | Full Length | 32" | 409" | Drawing |
| 409" Diamater | 50,000 gal | Short Length | 32" | 409" | Drawing |
| 512" Diamater | 77,000 gal | Full Length | 32" | 512" | Drawing |
| 512" Diamater | 77,000 gal | Short Length | 32" | 512" | Drawing |
You might also be interested in our 5,000 gallon water tank DIY installation kit.
Water Tank Features
• G145 Galvanized Coated Corrugated Steel Walls- • Hot Dip Galvanized Roof Structure & Corrugated Dome Roof
- • Foam Roof Seal for Dust and Vermin Protection
- • NSF/ANSI 61 Certified for Potable Water Use Tank Liner/Food Grade
- • 2” Outlet with Nickel Coated Metal Ball Valve
- • 2” Drain with Nickel Coated Metal Ball Valve
- • 6” Overflow with Mosquito Screen and Flap Valve
- • Inlet Basket with UV Guard
- • Geomat Cushion Layer Tank Liner Protection
- • Tank Wall Moisture Barrier
- • Lockable Access Hatch with Removable Ladder
- • Available in sizes: 5000 gal, 12000 gal, 16000 gal, 28000 gal, 37000 gal, 50000 gal, 65000 gal, 77000 gal and 102000 gallon sizes. Custom sizes are also available.
- • Meets code requirements (see below)
Optional:
- Rainsaver Gutter System
- Decorative Roof Facia
- Additional and over-size fittings
Water Tank Benefits
- • Durable, strong, reliable, and safe
- • 20 year "Leak Free" Pro-Rata Warranty leads the industry
- • 30+ years of experience
- • Fitted geotextile tank liner underlay to protect against liner damage for the life of the tank
- • Moisture barrier for extra protection and to prevent base erosion
- • Hinged lockable roof and access hatch provides secure access
- • Inlet light guard prevents sunlight from entering the tank,prevents algae growth
- • Optional trained and qualified staff for installation
Corrugated Water Tanks Downloads
- One Clarion Corrugated Water Tank Flyer (pdf)
- Site Preparation Guide (pdf)
- Sample Installation Instructions (pdf)
- Tank Size Calculator
Why Water Tanks?
Water Tank Panels
Treated with the thickest galvanized coating on the market, water tank panels use 1.45 oz/sf (G145). Our steel water tanks are strong, and resist water, wind and seismic loads without incurring excess material costs. (See tank specification above for specifics about snow, wind, and seismic loads.)
Water Storage Tank Liner
Water tanks provide safe drinking water storage for many, many years to come. Our liner is BPA-free, food grade, and is certified to meet NSF potable water requirements. Our liners last longer and offer greater protection. However, we use a “monofilament” liner, because it resists fatigue cracking and is very stretchy… these are important characteristics for safe and long lasting water storage.
One Clarion Tank Warranty
Enjoy long lasting safe water storage with One Clarion tanks and a 20 year “No-Leaks” warranty. Our warranty is supported by over 30 years of experience. We use only the best materials to ensure that your tank survives the toughest conditions with ease.
Corrugated Tank Installation
Only the 5,000 gallon corrugated water tank is available as a DIY kit. You can also choose to have it professionally installed. For the other tank sizes, you can manage the installation, or you can have our team of trained technicians handle the installation.
See: Sample Installation Instructions.
One Clarion Tank Code Requirements
Our water tanks are designed to meet or exceed the following standard loading, concrete and steel structure codes:
- • ASCE7-10 Minimum Design Loads For Buildings and Other Structures
- • ACI318-14 Building Code Requirements for Structural Concrete
- • AISC 360-10 Specification for Structural Steel Buildings
- • AISIS100-07 North American Specification for the Design of Cold-Formed Steel Structural Members
- • AWS D1.1 Structural Welding-Steel
- • NSF/ANSI 61: Drinking Water System Components
Corrugated Water Tanks Applications
One Clarion Corrugated Water Tanks are designed and manufactured for long-lasting quality water storage. They are transported inexpensively anywhere in the world and assembled in by trained installers in a day (in most cases).
Appropriate for municipal, agricultural and industrial projects, our corrugated water tanks are used for a variety of projects with a wide range of applications:
- • Rainwater Collection
- • Fire Water Storage
- • Irrigation Water Storage
- • Agriculture
- • Drinking Water Storage
- • Process Water Storage
- • Bulk materials and dry goods
- • Frac Storage Tanks
See: DIY 5,000 gallon water tank kit!
The Competition
Many competitors often cut costs by cutting quality, offering lower grades of metal, thinner coatings, less robust tank fittings. They use liners that don’t wear well and compromise safe water storage over time. Customers typically don’t notice the difference until later when their tank fails. Do your homework - we’re not afraid of what you find! In fact, we’re confident that you’ll find we’re the longest lasting, highest quality water storage tank for the price on the market If not and you find ways we can improve, we’d like to know about it!
Learn more about 5,000 gallon, 12,000 gallon, 50,000 gallon water tanks and more! We’re here to answer all your questions. Call us Today!
Call our knowledgeable team at 863-261-8388 or fill out our quote request form to discuss your requirements.
Bolted Steel Water Tank Frequently Asked Questions
Bolted Steel Water Tank FAQs
Each Water Tank order consists of four main components:
- - Metal tank shell
- - Flexible internal liner
- - Domed tank roof
- - Valves and accessories
* The flexible liner inside the tank is resistant to chemicals, ultraviolet light and mechanical damage. Our liner is food grade and NSF 61 compatible for safe potable water storage. We use a solid, flexible polyethylene liner that is not prone to hardening and cracks, unlike competitors.
* The domed metal roof stops sunlight (UV), dirt and debris from contaminating the water you’ve collected.
One Clarion’s tanks also come with features for rainwater harvesting; outlets and valves for connecting the tank to an irrigation or sprinkler system, leaf strainers with light guards, access hatches, and level gauges.
Yes! We have a special feature just for this, Use our innovative "Rainsaver" gutter system to collect rainwater from the tank's roof and redirect it to your tank. Designed with dozens of channels around the perimeter of the domed roof, the channels run from one side of the cistern to the other. Rainsavers are placed at the end of each channel to collect the rainwater water. When the tank is full, the overflow can be set up to divert the extra to other storage tanks.
