Welcome to Water Trailer

Call One Clarion now 1-863-261-8388

525 Gallon DOT Water Trailer

In Stock As of 8/18/2022

We currently have two 525 gallon AquaDOT trailers in stock, and ready to ship. If you've been shoping, you know how the usual wait time is on these in the market (ussually 8 weeks or more). One ships from Alabama, and the other ships from California. Call now and get your water trailer now not months later.

You'll find our 525 gallon DOT Water Trailers to be not only well-priced, but very well-made and durable! This DOT trailer, with water tank and pump, is able to deliver water to a wide variety of sites and locations, whether on open roads or through rough terrain. It takes uneven ground and rough construction sites with ease. Rated to 8.000 lbs, the slipper leaf spring suspension and heavy duty high speed cambered axel provide superior weight distribution and stability on unlevel ground and handle harsh roads gracefully.

Our friendly staff is here to help you get the exact product you need!

or Contact us for additional information.

Not what you're looking for? We have an extensive list of styles, sizes, and components at exceptional pricing. All capacities listed are for use with water-based liquid storage. Please contact us for information on other liquid storage options.

Looking for other features? We have an assortment of water trailer vendors with an extensive offering of styles, sizes, and components at exceptional pricing. All capacities listed are for use with water storage. We ship from warehouses across the U.S. and our team will work with you to provide the equipment that fits your needs, delivered within the time frame that you need it. Contact Us for information on other liquid storage options.

See the video below for a demonstration of the wide-angle spray bar, and the specifications table for additional package details. Nearly unlimited customization options are available, but may affect lead-time.

*Inventory levels change continually and vary by location and features required. Call for availability.

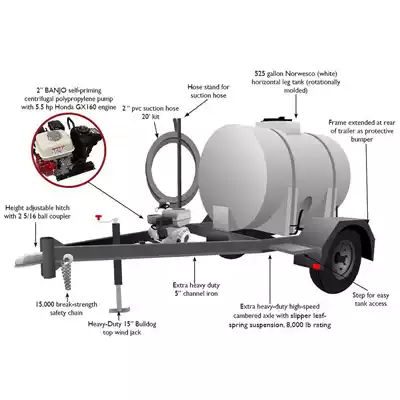

525 Gallon DOT Water Trailer Features

  • 5.5 HP Honda Engine, GX160
  • TFull Port Banjo Flange Fittings
  • Heavy-Duty, High-Speed Single Axle Rated 8,000 Lb.
  • Height Adjustable Hitch With 2 5/16 Ball Coupler Rated 20,000 Lb.
  • Bulldog Top Wind Jack Rated 2,000 Lb.
  • Step Attached For Easy Tank Access

525 Gallon DOT Water Trailer Benefits

  • Fully DOT-Compliant
  • Easy To Maneuver
  • Better Weight Distribution
  • Quick Fill System
  • Equipped For Accessories
  • 5 Yr. Frame And 3 Yr. Non-Prorated Tank Warranty

Water Trailer Details

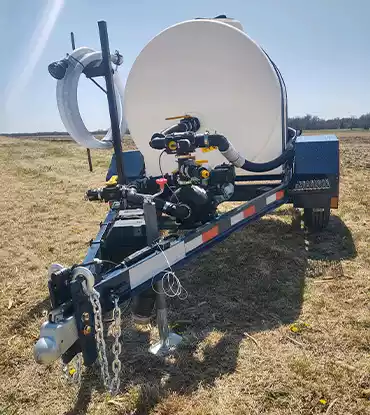

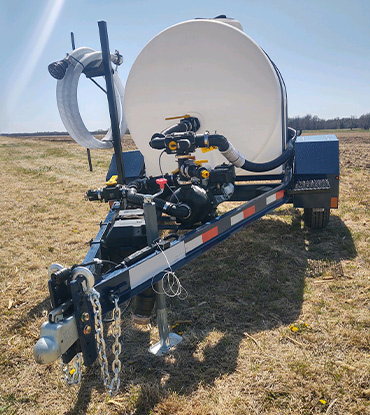

Equipped with electric brakes, fenders, reflectors & LED lighting, this high-speed trailer package is DOT-compliant for safe use on public roads. Complete with a suction hose, and a wide angle spray bar, the trailer with water tank and pump package is delivered fully assembled.

This 525-gallon water trailer's extra heavy-duty frame is made from 5" channel iron and with all the required DOT-compliant features, including electric brakes, reflectors and LED brake lights. With strong, long-lasting fenders and a powder-coated paint finish*, our water trailer is the most durable, well-made water trailer on the market. The 525-gallon water trailer frame extends at the rear of trailer to form a protective bumper and includes attached step for easy tank access.

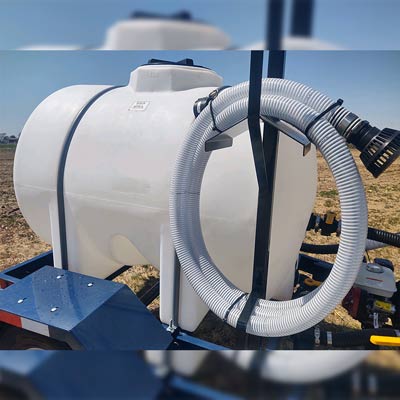

This reliable 525 gallon water trailer is made to carry water from job-to-job, despite the rough roads it may have to travel to get there. This trailer's configuration with a combination of the heavy-duty frame, tank reinforcements, heavy-duty high-speed cambered axle, and slipper leaf spring suspension has a well-deserved reputation for distributing weight, improving balance on un-level ground and increasing maneuverability around job sites. Equipped with a 20-foot long suction hose, the water trailer for construction includes a hose bib with heavy-duty turn ball valve for faster on/off response. The adjustable, wide-angle stainless steel spray nozzle mounts on either side or on the back of the trailer, providing an array of width and angle possibilities.

See all of the DOT Nurse Trailer Features we offer. You might also be interested in our 1610 DOT trailer.

525 Gallon DOT Water Trailer Specifications

Tank 525 gallon Norwesco Flat Bottom Leg Tank, top fill port, bottom dispensing port/drain 3 or 5 year nonprorated warranty
Supports 2" x 6" rectangular tubing cross member tank supports
Frame Extra heavy-duty 5" channel iron frame, powder coated Rear of frame extends 2" beyond tank as a bumper
5-year warranty
Axle Extra heavy-duty high-speed cambered tandem axles
8,000 lb slipper spring suspension
Tires 11L x 15 8 ply tires
15 x 10 wheels
Jack Heavy-duty jack that folds up within frame
Extras 15,000 lb safety chains
Adjustable clevis
Step platforms
Hose Rack
Optional Many options for pumps and engines are available that can be mounted within the tongue for greater protection.

Fire hose kit options available on request (not included)

Options: Customize this trailer to meet your specific needs. Options include: Algae resistant black tank, extended frame, fire hoses/reels/nozzles, suction hose/strainer/stand, tank sight gauge, engine & pump choices, mixers, booms, nozzles, and more. Ask your One Clarion representative for a list of available accessories! For a full listing of options, please see: Water Trailer Accessories (pdf). Also check our Mounted Water Skid.

Water Trailer Applications and Accessories

The 525 DOT water trailer is constructed to handle a wide range of projects and applications. This durable water trailer is made to handle dust control, watering vegetation, construction needs, packing sites for foundations and many other jobs. Our trailer with water tank and pump is carefully crafted to provide a specific balance of operational convenience, safety and durability. The 525-gallon water trailer for sale is designed specifically to use in rigorous worksite conditions. Contact us for pricing and details.

Water Trailer Accessories

We have water trailer accessories to customize for your specific needs. Optional accessories include algae resistant black tank, extended frame, fire hose/reel/nozzles, suction hose/strainer/stand, tank sight gauge, engine & pump choices, mixers, booms, nozzles, and much more. Ask your One Clarion representative for a list of available accessories!

For freeze protection for your water trailer or skid, our Water Trailer Heater Blankets are exactly what you need . When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!

Our friendly staff is here to help you get the exact product you need!

or Contact us for additional information.

Water Trailer Frequently Asked Questions

525 AquaDOT Trailer Questions and Answers

If the AquaDOT trailer of your choice isn't in stock, chances are than we have an order (for standard trailers) already placed and waiting in the production line. Reserve yours today by calling us, and get your trailer faster.

If you're looking for a customized trailer, they're typically running 8-12 weeks out from when you place your order.

Understanding water trailer specs means understanding the fine details or 'specifications' that make up a specific water trailer. This can be everything from the materials used to the exact dimensions of various parts of the trailer. Some of our 525 gallon water trailer specs include an 8,000 lb. single slipper spring axle, height adjustable hitch with 2 5/16 ball coupler, a GX160, 5.5 hp Honda engine, and a 5 year tank warranty to name a few. Call to speak to one of our water trailer specialist for more information.

Get a Quote   or Call us! 863-261-8388
